Know What You're Buying
Full specifications, what's in the box, and everything you need to plan your install.

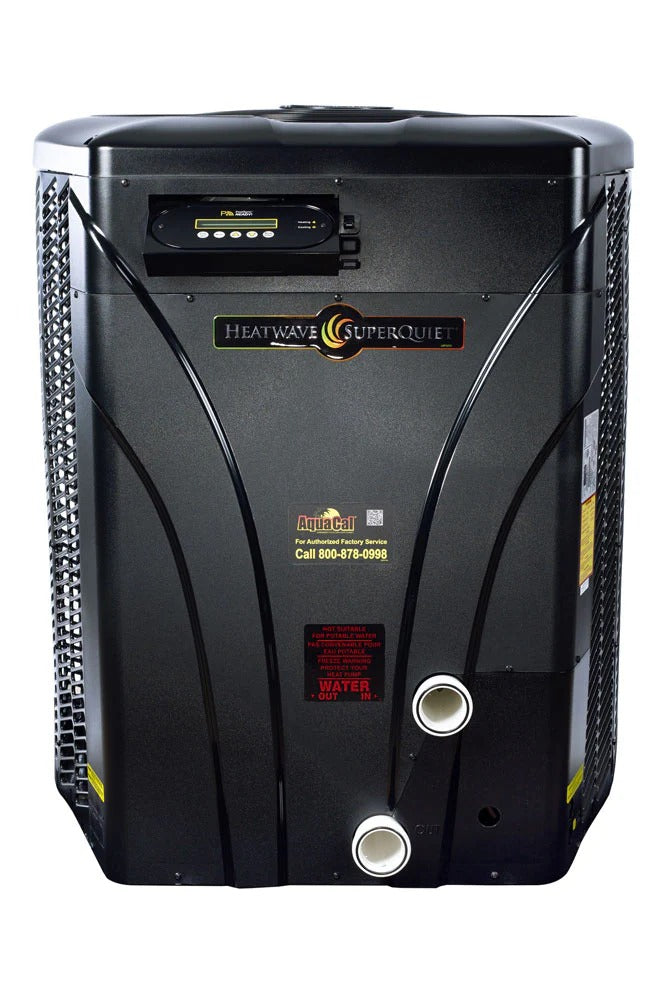

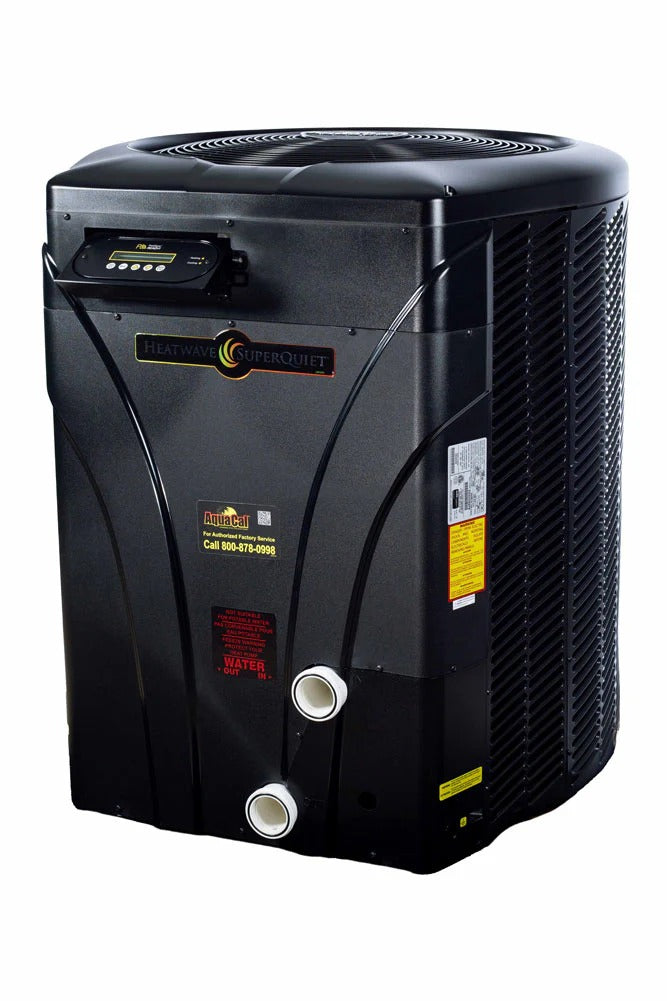

The HeatWave SuperQuiet SQ140R comes equipped with all standard features.
- Corrosion proof cabinet
- Scroll Compressor – for quiet operation
- Microprocessor Controls
- Off-Set Plumbing
PoolSync WiFi Built-in
Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app.
Features

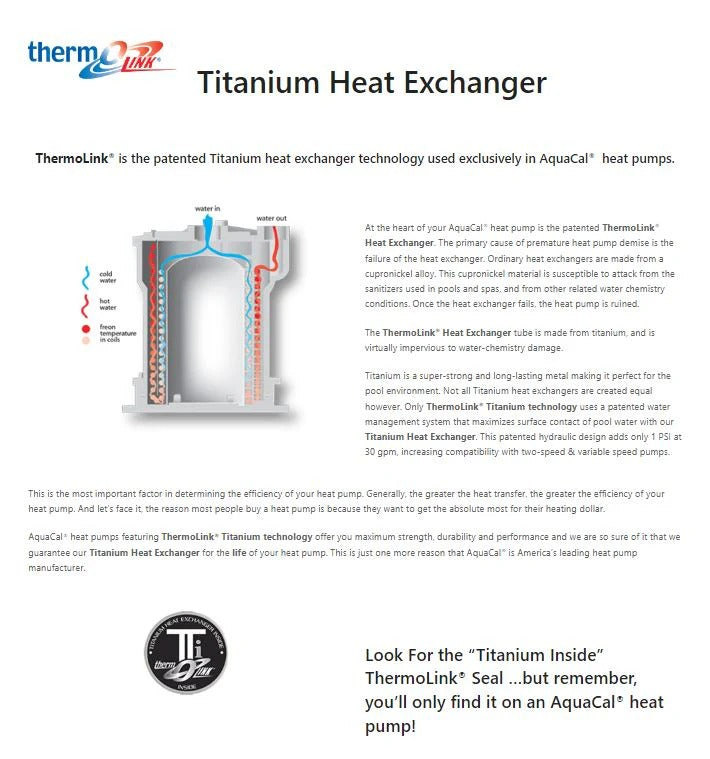

- Patented hydraulic design adds only 2 PSI at 45 gpm, increasing compatibility with two-speed & variable speed pumps
- Saves money when using a variable speed pump by reducing the RPM needed to achieve the same flow rate
- Save money in a single speed pump application by reducing the run time needed to achieve the same turnover rate of the pool
Corrosion Proof Cabinet
- Louvered side panels protect evaporator coil while ensuring efficient air flow
- Rust and fade proof
- Impact resistant
- Built-in drain pan provides condensate management
Microprocessor Controlled with Digital Display
- Weather protected control with full text display provides easy-to-read menu options and unit status
- Ability to connect to most external controllers for heating and cooling mode
- Hybrid functionality can initiate a gas heater when an extra boost of heat is needed
Additional Features
PoolSync WiFi Built-In
- Adjust heating, cooling and Auto-Temp modes via the PoolSync® app
- Enables remote diagnostics, instant performance updates and quick troubleshooting
- Monitors operation in real-time and ensures reliable performance year-round
Upgrade to Full Automation
- Pair with the PoolSync Relay Center to connect and manage all the equipment on your pool pad effortlessly, simplifying your pool care experience.
| Model | Model | SQ140R |
| Frequency | Frequency | 60 Hz |
| BTU Output (80°F water / 80°F air / 80% RH) | BTU Output (80°F water / 80°F air / 80% RH) | 114,000 |
| BTU Output (80°F water / 80°F air / 63% RH) | BTU Output (80°F water / 80°F air / 63% RH) | 106,000 |
| BTU Output (80°F water / 50°F air / 63% RH) | BTU Output (80°F water / 50°F air / 63% RH) | 72,000 |
| COP (80°F water / 80°F air / 80% RH) | COP (80°F water / 80°F air / 80% RH) | 5.7 |
| COP (80°F water / 80°F air / 63% RH) | COP (80°F water / 80°F air / 63% RH) | 5.5 |
| COP (80°F water / 50°F air / 63% RH) | COP (80°F water / 50°F air / 63% RH) | 4.0 |
| Refrigerant | Refrigerant | R410A |
| Heat Mode | Heat Mode | Heat & Cool |
| kW Input | kW Input | 5.9 |
| Voltage / Hz / Phase (Option A) | Voltage / Hz / Phase (Option A) | 208-230V / 60 Hz / 1-Phase |
| Voltage / Hz / Phase (Option B) | Voltage / Hz / Phase (Option B) | 208-230V / 60 Hz / 3-Phase |
| Maximum Fuse Size (Option A) | Maximum Fuse Size (Option A) | 60 A |
| Maximum Fuse Size (Option B) | Maximum Fuse Size (Option B) | 50 A |
| Recommended Breaker Size | Recommended Breaker Size | 50 A |
| Minimum Circuit Ampacity (Option A) | Minimum Circuit Ampacity (Option A) | 38.5 A |
| Minimum Circuit Ampacity (Option B) | Minimum Circuit Ampacity (Option B) | 31.0 A |
| Water Flow Rate (Min / Max) | Water Flow Rate (Min / Max) | 30 / 70 gpm |
| Unit Weight | Unit Weight | 264 lbs |
| Unit Dimensions (L x W x H) | Unit Dimensions (L x W x H) | 34" x 34" x 40" |
| Shipping Weight | Shipping Weight | 304 lbs |
| Shipping Dimensions (L x W x H) | Shipping Dimensions (L x W x H) | 37" x 36" x 43" |
