Know What You're Buying
Full specifications, what's in the box, and everything you need to plan your install.

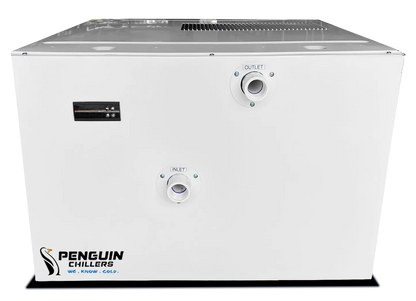

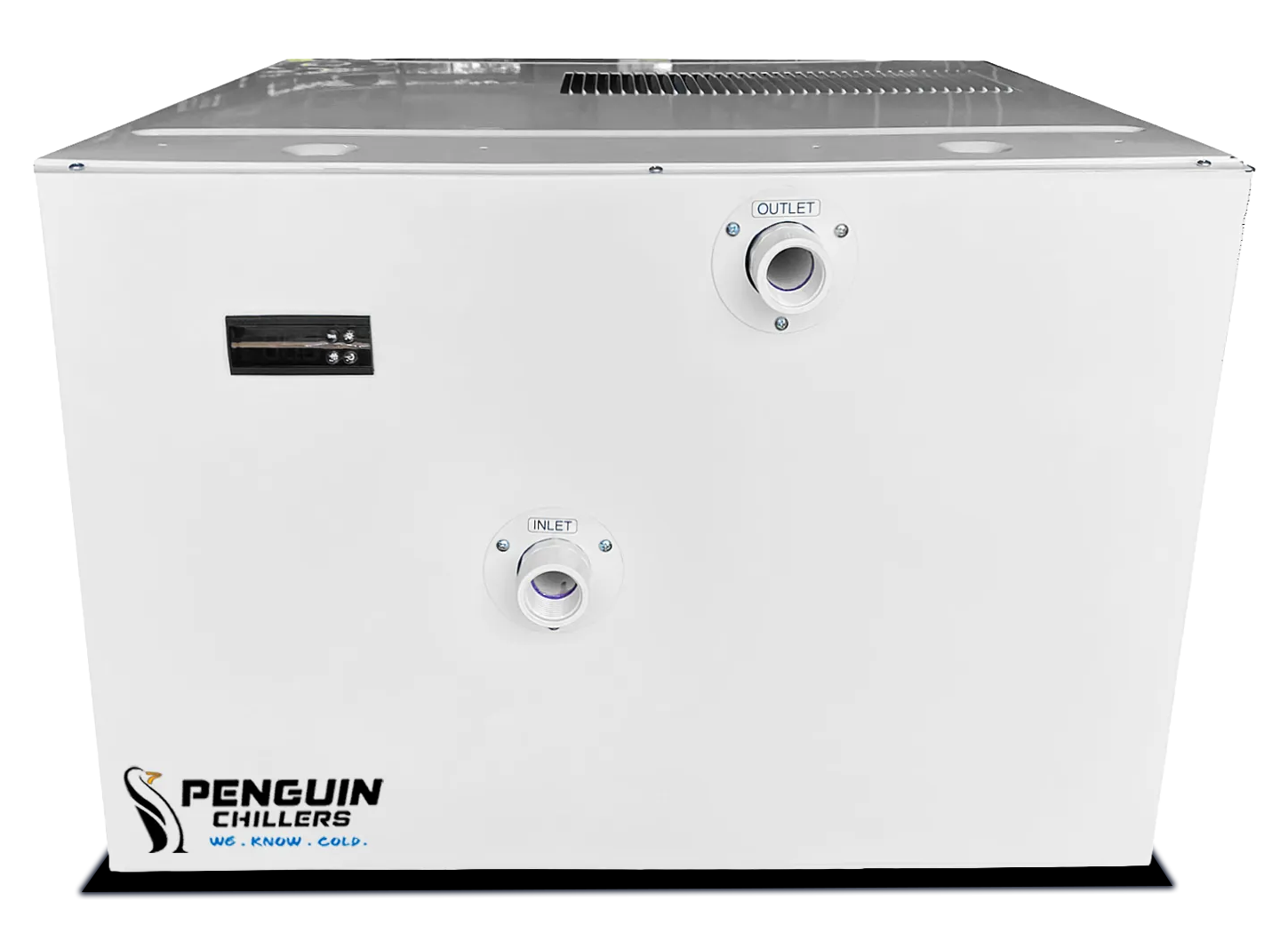

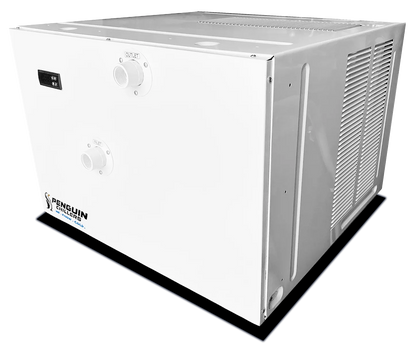

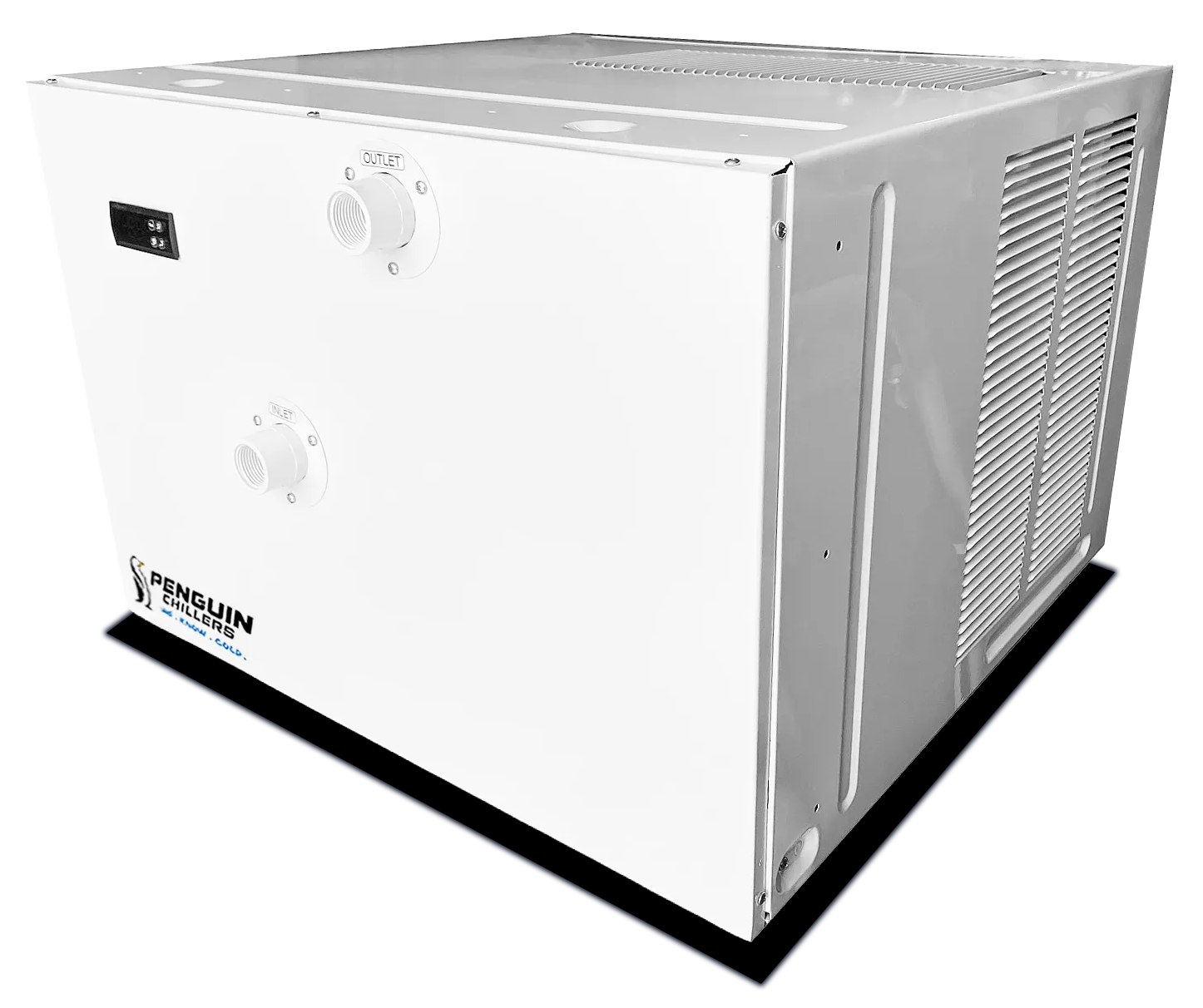

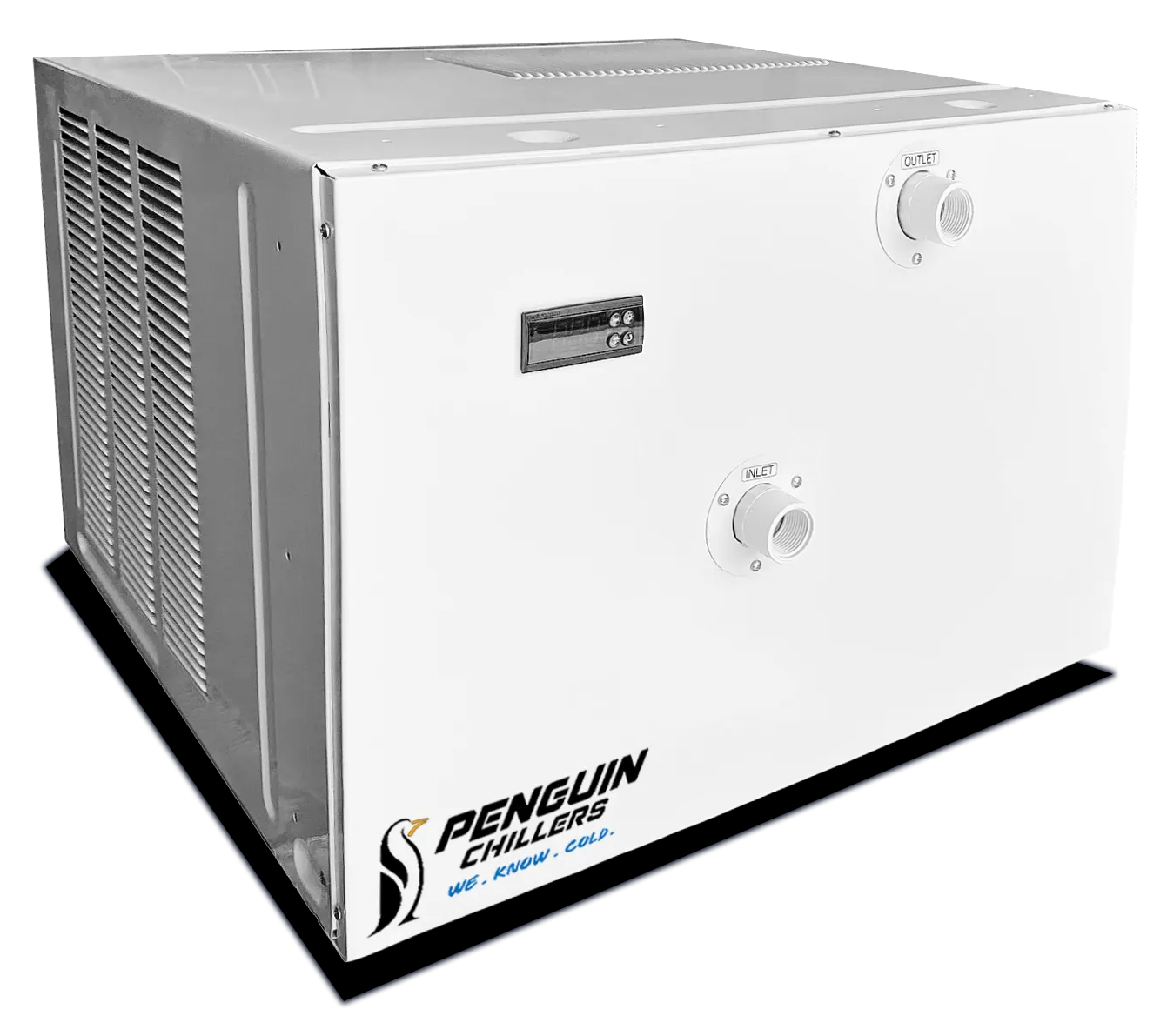

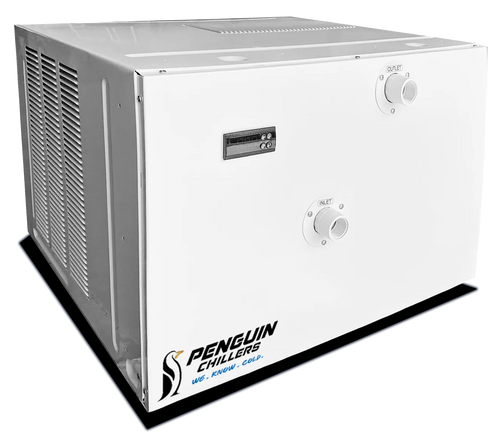

25,000 BTU/hr — the largest chiller in the standard range, built for commercial-scale plunge use and multi-tub setups.
Penguin Chillers has been building water chilling equipment in Knoxville, Tennessee since long before cold plunging went mainstream. The 2.5 HP is what a gym, recovery studio or multi-tub facility runs when a 1 HP unit cannot keep up. Choose the titanium coil for normal treated water, or the 316 stainless shell and coil for higher pressure systems.
Electrical — this one is different
Unlike every other chiller in this range, the 2.5 HP runs on 208–240V single phase, 14.7A, 3,200W, through a NEMA 6-30 style receptacle. This is not a household outlet. You will need an electrician to run a dedicated 240V circuit before installation. Please confirm this is in place before ordering — a unit that cannot be plugged in is still subject to our return terms.
Read this before you buy — what is not included
- No circulation pump. Penguin recommends a Danner Mag Drive 5.0–18, rated under 10 PSI and 23 ft maximum head.
- No filter or install kit.
- Indoor use only. Not outdoor rated.
Warranty
1 year limited manufacturer warranty is included as standard. A 2 or 3 year extension can be added above. Claims are handled directly by Penguin Chillers: (865) 214-6509 or support@penguinchillers.com.
Not covered: normal wear and tear, damage caused by freezing, running the unit without continuous water flow, improper installation, and any failure to follow the manufacturer's installation, use or care instructions.
Delivery
- Ships direct from Penguin Chillers in Knoxville, Tennessee.
- At 135 lb this ships by freight. The carrier will call to arrange a delivery window — someone needs to be there to receive it, and you will want help getting it into position.
- Inspect before you sign. If the packaging looks damaged you can still accept it — photograph it, note the damage on the Bill of Lading, and contact us right away.
Installation notes
- Requires continuous water flow while running. A built-in flow switch shuts the chiller down if the pump fails.
- 1 in. Female NPT inlet and outlet.
Returns: This item can be returned within 21 days of delivery with prior authorization. A 20% restocking fee applies and return shipping is the customer's responsibility. Custom-built units are non-returnable. Transit damage, missing parts and manufacturing defects are always covered and are handled through the warranty process set out in our Refund & Return Policy.
- 25,000 BTU/hr — the largest chiller in the standard range
- Sized for commercial plunge use and multi-tub facilities
- Titanium coil or 316 stainless shell and coil options
- Built-in flow switch protects the unit if the pump fails
- 61 dBA
- Made in Knoxville, Tennessee
- 1 year warranty included, 2 and 3 year extensions available
- Requires a dedicated 240V circuit — not a household outlet
- Circulation pump sold separately
- • 2.5 HP water chiller unit

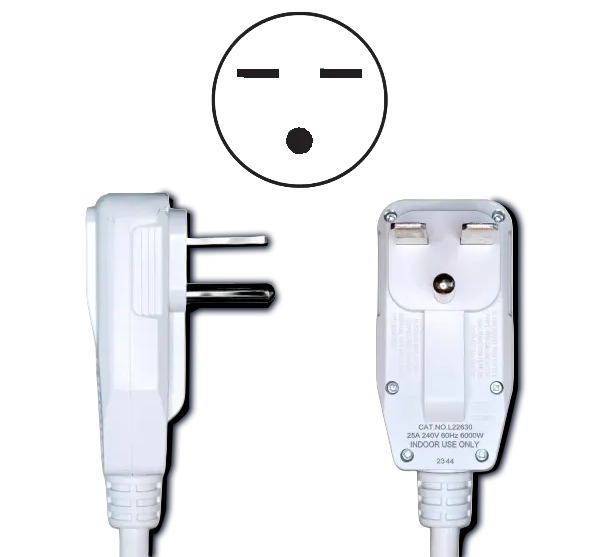

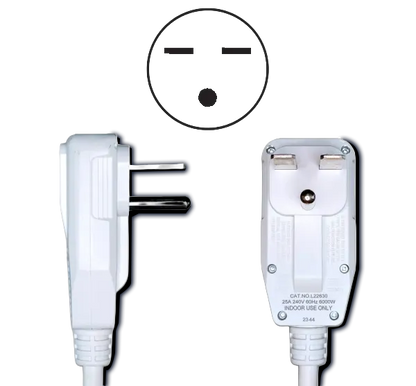

- • 6 ft power cord with NEMA 6-30 style plug
- • No circulation pump — sold separately
- • No filter or install kit — sold separately
| Cooling Capacity | Cooling Capacity | 25,000 BTU/hr |
| Horsepower | Horsepower | 2.5 HP |
| Heat Exchanger | Heat Exchanger | PVC shell with titanium coil, or 316 stainless shell and coil |
| Operating Temperature Range | Operating Temperature Range | 37°F – 100°F with water |
| Inlet / Outlet Connection | Inlet / Outlet Connection | 1 in. Female NPT |
| Dimensions | Dimensions | 26.5"W x 25"D x 18.5"H |
| Weight | Weight | 135 lb |
| Electrical | Electrical | 208–240V, 14.7A, 3,200W, single phase |
| Receptacle | Receptacle | NEMA 6-30 style — dedicated 240V circuit required |
| Cord Length | Cord Length | 6 ft |
| Sound Rating | Sound Rating | 61 dBA |
| Outdoor Rated | Outdoor Rated | No, indoor use only |
| Pump Included | Pump Included | No |
| Recommended Pump | Recommended Pump | Danner Mag Drive 5.0–18, under 10 PSI / 23 ft head |
| Warranty | Warranty | 1 year limited, 2 or 3 year extension available |
| Country of Manufacture | Country of Manufacture | United States (Knoxville, Tennessee) |
Documentation for this product is available on request — contact us and we will send it over.
