Know What You're Buying
Full specifications, what's in the box, and everything you need to plan your install.

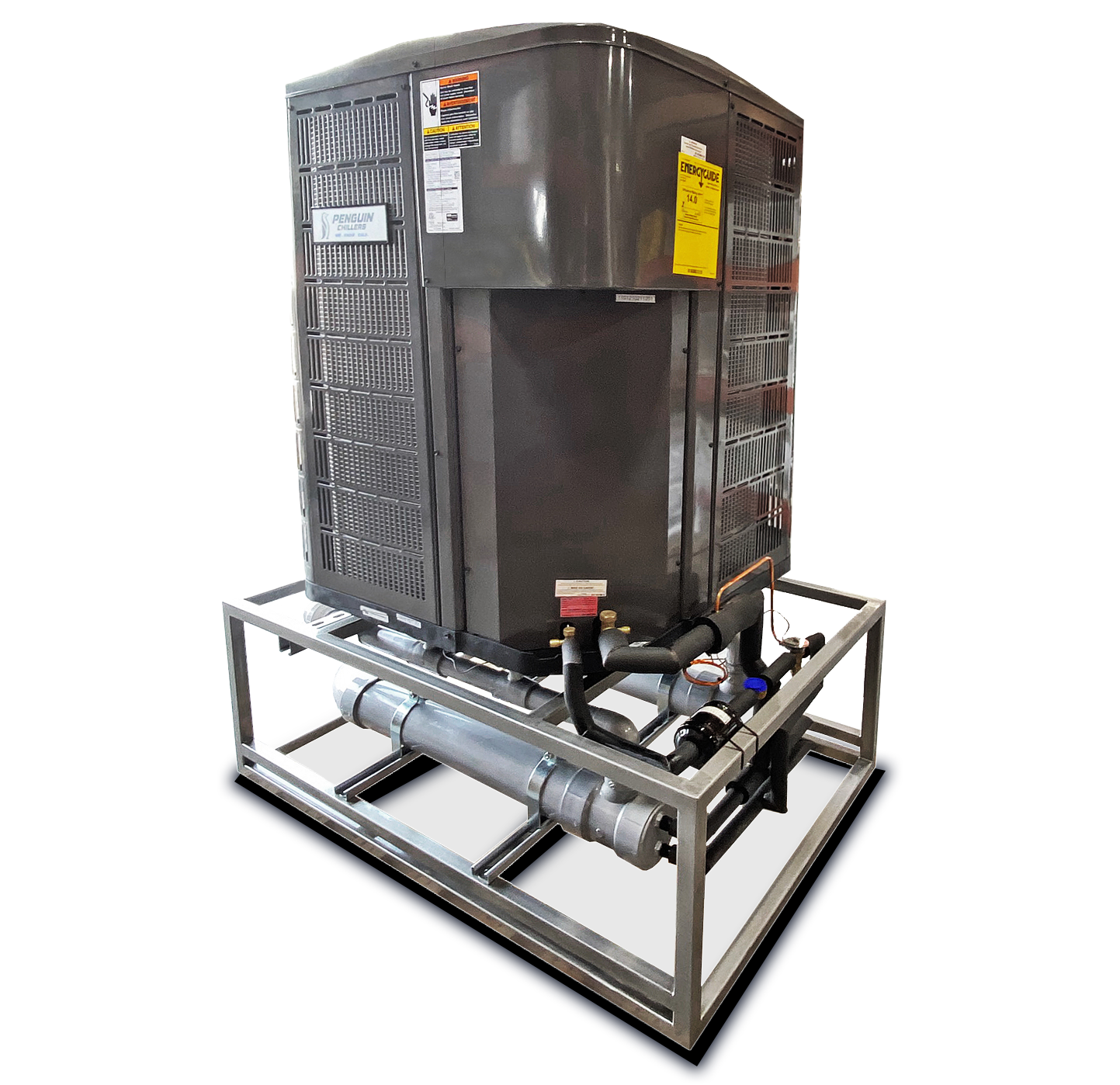

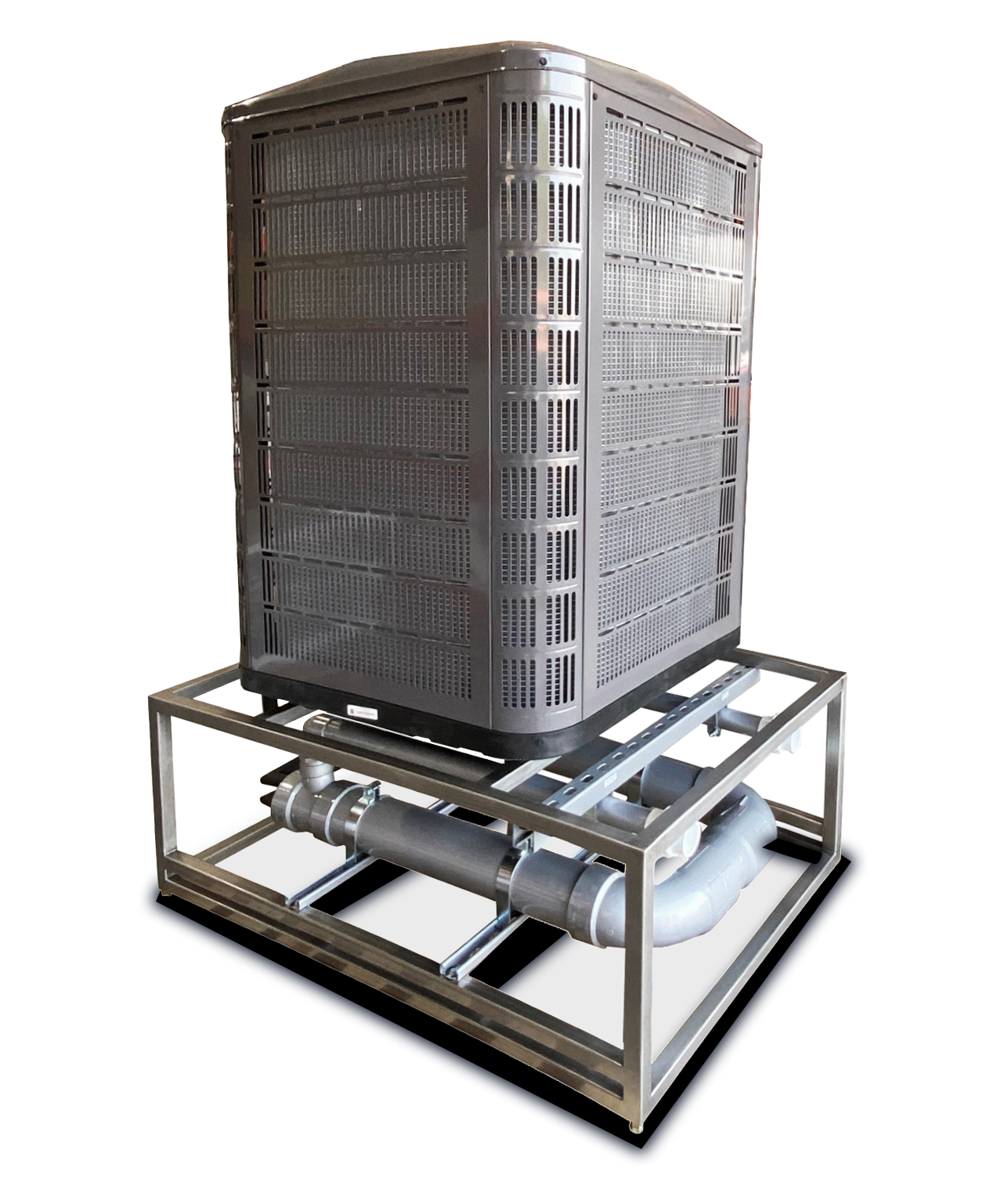

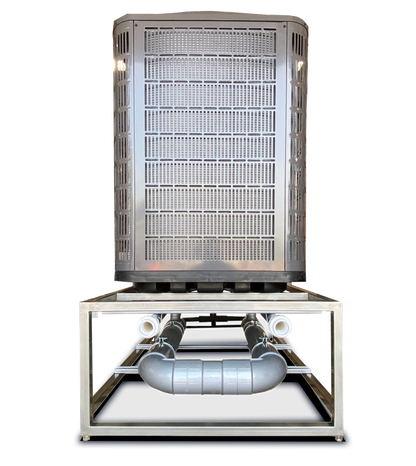

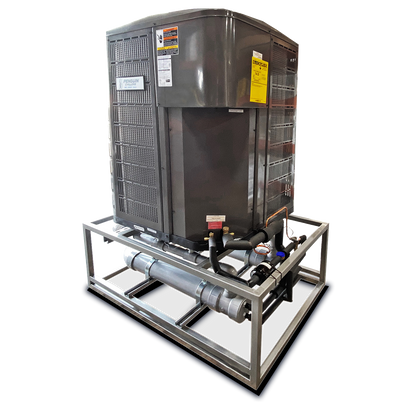

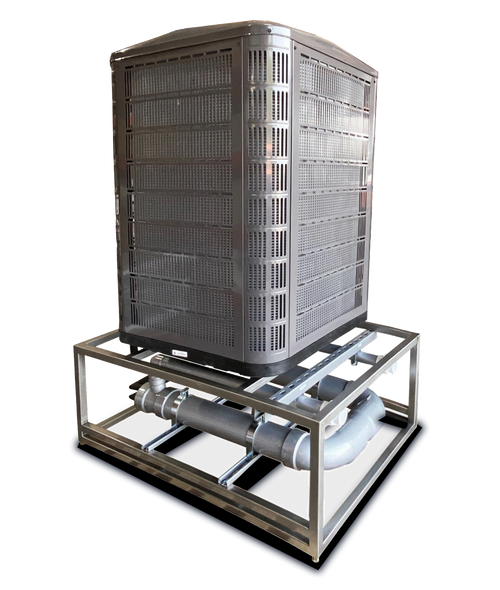

24,000 BTU/hr on a 304 stainless frame, outdoor rated and pad mount ready — the chiller for a recovery studio or a multi-tub plunge install.
Penguin Chillers has been building water chilling equipment in Knoxville, Tennessee since long before cold plunging went mainstream. This is their commercial platform: built to run continuously, sit outside on a pad, and keep several tubs at temperature rather than one.
Choosing your heat exchanger
- PVC shell with titanium coil — highly corrosion resistant and safe in treated plunge water. This is the right choice for almost every cold therapy install. Rated to 10 PSI.
- 316 stainless shell and coil — for higher pressure systems, rated to 50 PSI.
Penguin also offers a copper coil option on this unit. We do not list it, because copper is not appropriate for the chemically treated water a cold plunge runs.
This is a commercial installation
- Requires 208–240V single phase at 17.7A. An electrician needs to run the service before delivery.
- Pad mount ready — needs a stable, level pad with clear airflow around the unit.

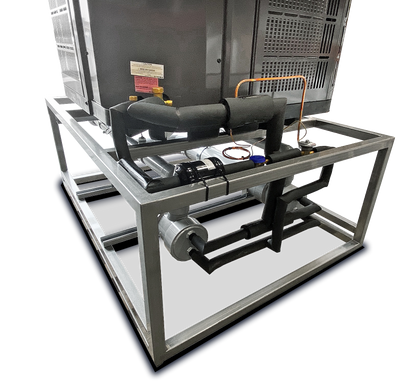

- 1.5 in. slip connections. A circulation pump is not included; Penguin recommends a Danner Magnetic Drive at 2,400–3,600 GPH. Our Water Chiller Accessory Package covers both of those pump sizes.
- Requires continuous water flow. A built-in flow switch shuts the chiller down if the pump fails.
Warranty
1 year limited manufacturer warranty. Claims are handled directly by Penguin Chillers: (865) 214-6509 or support@penguinchillers.com.
Delivery
- Ships direct from Penguin Chillers in Knoxville, Tennessee. Lead time is 2–3 weeks before it leaves the factory.
- Ships by freight at 245 lb. The price shown includes residential or rural delivery with a liftgate, so no forklift is needed at your end.
- The carrier will call to arrange a delivery window — someone needs to be there to receive it.
- Inspect before you sign. If the crate looks damaged you can still accept it — photograph it, note the damage on the Bill of Lading, and contact us right away.
Returns: This item can be returned within 21 days of delivery with prior authorization. A 20% restocking fee applies and return shipping is the customer's responsibility — on a 245 lb freight item that is a substantial cost, so please confirm your electrical service and pad before ordering. Custom-built units are non-returnable. Transit damage, missing parts and manufacturing defects are always covered and are handled through the freight-claim and warranty process set out in our Refund & Return Policy.
- 24,000 BTU/hr, 2 ton commercial capacity
- Outdoor rated and pad mount ready
- 304 stainless steel frame
- Titanium coil or 316 stainless shell and coil options
- Built-in flow switch protects the unit if the pump fails
- 1.5 in. slip connections
- Made in Knoxville, Tennessee
- 1 year warranty included
- Circulation pump sold separately
- • 2.0 ton commercial water chiller unit
- • No circulation pump — sold separately, Danner Magnetic Drive 2,400–3,600 GPH recommended
- • No tubing or fittings — sold separately
| Cooling Capacity | Cooling Capacity | 24,000 BTU/hr (2.0 ton) |
| Heat Exchanger | Heat Exchanger | PVC shell with titanium coil, or 316 stainless shell and coil |
| Pressure Rating | Pressure Rating | 10 PSI PVC shell, 50 PSI 316 stainless |
| Operating Temperature Range | Operating Temperature Range | 37°F – 100°F with water |
| Refrigerant | Refrigerant | R-454B |
| Inlet / Outlet Connections | Inlet / Outlet Connections | 1.5 in. slip |
| Dimensions | Dimensions | 34"W x 47"D x 50"H |
| Weight | Weight | 245 lb |
| Electrical | Electrical | 208–240V, 17.7A, single phase |
| Frame | Frame | 304 stainless steel |
| Outdoor Rated | Outdoor Rated | Yes |
| Pad Mount Ready | Pad Mount Ready | Yes |
| Pump Included | Pump Included | No |
| Recommended Pump | Recommended Pump | Danner Magnetic Drive, 2,400–3,600 GPH |
| Lead Time | Lead Time | 2–3 weeks before shipping |
| Warranty | Warranty | 1 year limited |
| Country of Manufacture | Country of Manufacture | United States (Knoxville, Tennessee) |
Documentation for this product is available on request — contact us and we will send it over.
